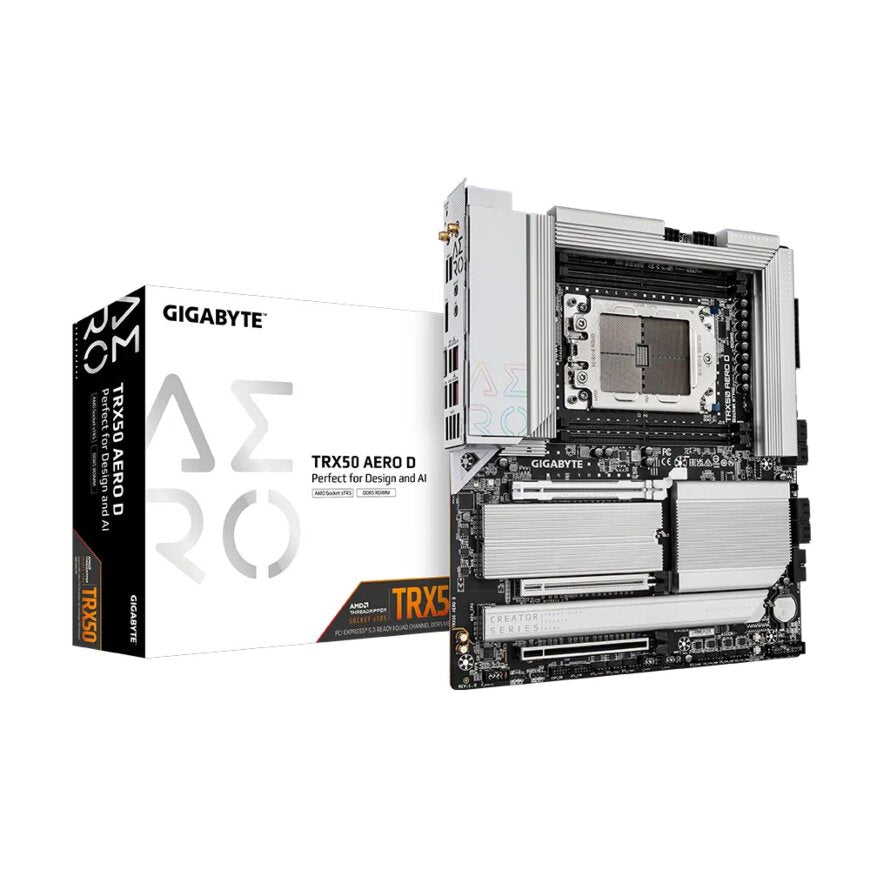

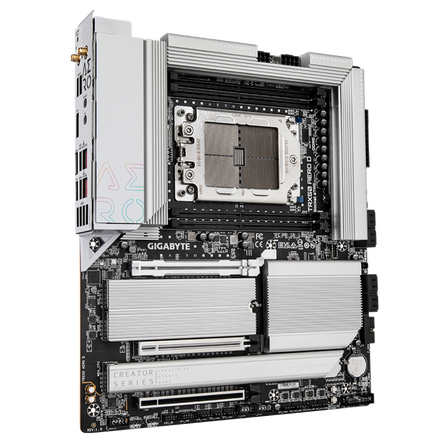

Gigabyte TRX50 AERO D sTR5 DDR5 E-ATX Motherboard - Black | TRX50-AERO-D

Gigabyte TRX50 AERO D sTR5 DDR5 E-ATX Motherboard - Black | TRX50-AERO-D

-

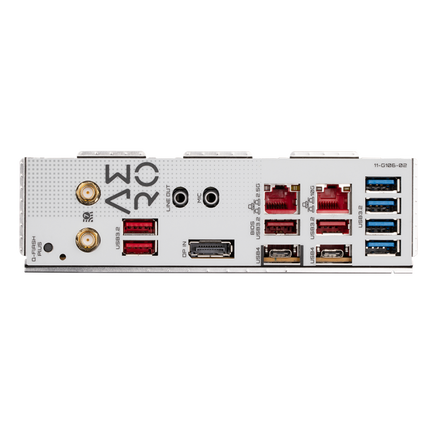

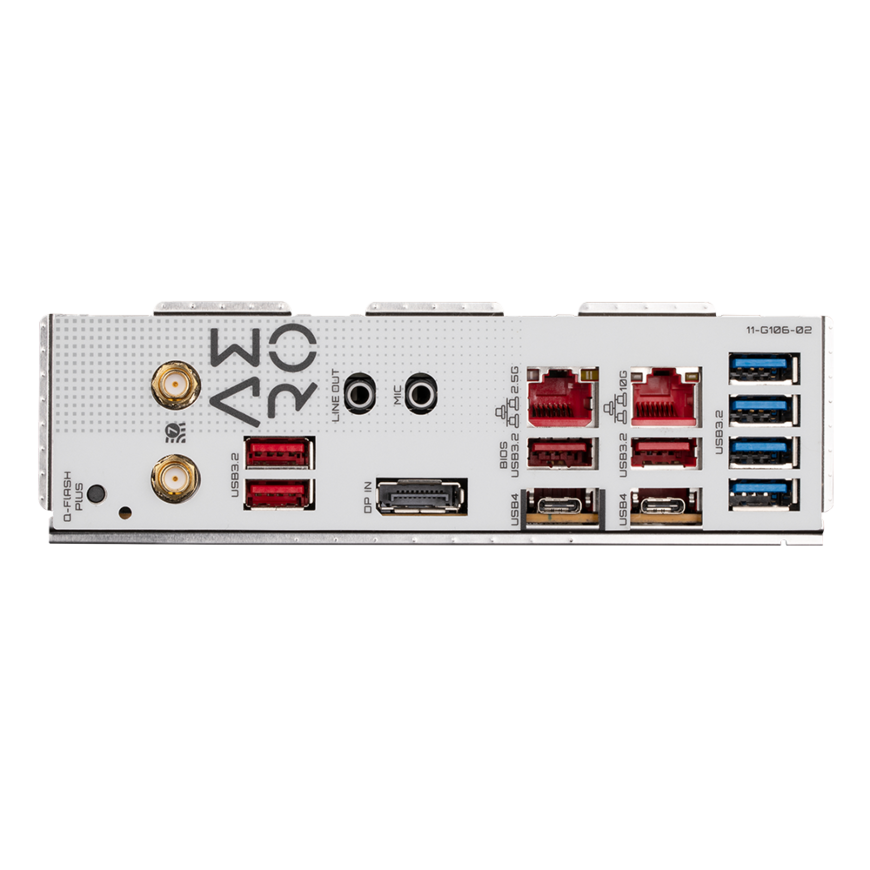

Rear I/O
The rear panel of the motherboard includes a single DisplayPort output, two Wi-Fi 7 antenna connectors, and two 3.5mm audio jacks for inputting and outputting speakers or headphones. The Realtek ALC4080 audio supports 2-channel HD audio output. Use the 2.5 or 10 GbE Ethernet ports for a wired internet connection.
Connect a range of peripherals using several USB ports. Four USB-A 3.2 Gen 1 ports and four USB-A 3.2 Gen 2 ports offer transfer speeds of up to 5 Gb/s and 10 Gb/s respectively. Two USB4 ports offer speeds up to 40 Gb/s which is perfect for external SSDs and other high-speed peripherals. One of these ports also supports DisplayPort output for external displays.

Memory and Storage Compatibility
Improve multitasking and efficiency by installing up to 1TB of 8000 MT/s quad-channel DDR5 memory in overclocked mode across four slots.
For long-term storage, three M.2 Gen 5.0 x4 slots and a single M.2 PCIe 4.0 x4 SSD slot, as well as eight SATA III ports, are available for initial building and future expansion.

Expansion Slots
This motherboard has two PCIe 5.0 x16 slots and one PCIe 4.0 x16 slot supporting the use of multiple graphics cards.

Internal Connectivity
Internal headers allow you to connect one USB-C 3.2 Gen 2x2 port, one USB-A 3.2 Gen 1 port, and two USB-A 2.0 ports to the front panel of a case. For troubleshooting and ease of use, this motherboard features a reset jumper, clear CMOS and CMOS jumper buttons, two temperature sensor headers, and a Trusted Platform Module header.
