| Specifications |
| Name |

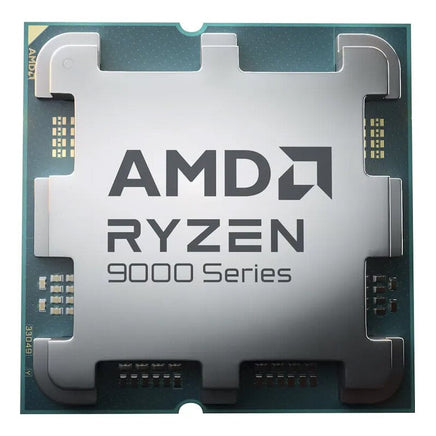

AMD Ryzen™ 9 9950X |
| Family |
Ryzen |
| Series |
Ryzen 9000 Series |
| Form Factor |
Desktops, Boxed Processor |
| Market Segment |
Enthusiast Desktop |
| AMD PRO Technologies |
No |
| Regional Availability |
Global |
| Former Codename |
Granite Ridge AM5 |
| Processor Architecture |
Zen 5 |
| # of CPU Cores |
16 |
| Multithreading (SMT) |
Yes |
| # of Threads |
32 |
| Max. Boost Clock |
Up to 5.7 GHz |
| Base Clock |
4.3 GHz |
| L1 Cache |
1280 KB |
| L2 Cache |
16 MB |
| L3 Cache |
64 MB |
| Default TDP |
170W |
| Processor Technology for CPU Cores |
TSMC 4nm FinFET |
| Processor Technology for I/O Die |
TSMC 6nm FinFET |
| Package Die Count |
3 |
| Unlocked for Overclocking |
Yes |
| Overclocking Technology |
Yes |
| Precision Boost Overdrive |
Yes |
| Optimizer Voltage Offsets |
Yes |
| AMD Ryzen™ Master |
Yes |
| CPU Socket |
AM5 |
| Supporting Chipsets |
A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set |
x86-64 |
| Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) |
Not Included |
| Recommended Cooler |
Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) |
95°C |
| Launch Date |
August 15, 2024 |
| OS Support |
Windows 11/10 - 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
|
