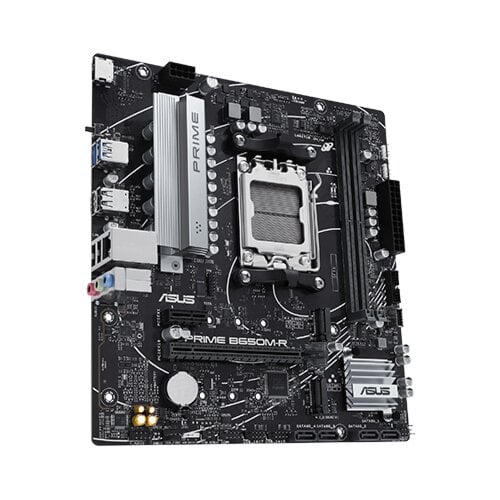

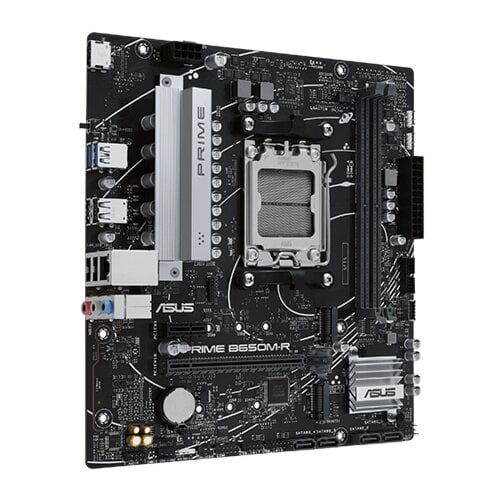

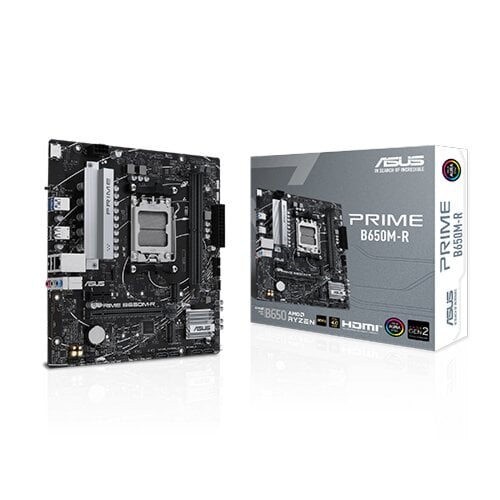

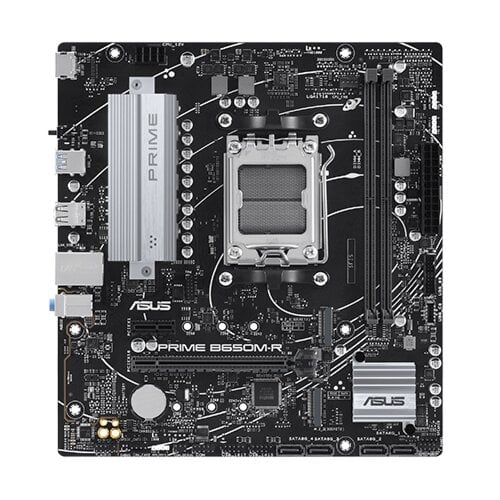

ASUS PRIME B650M-R AMD AM5 Gaming Motherboard - Black | 90MB1H30-M0EAY0
B650M-R
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-R provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power-saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
COOLING
Prime B650 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-R, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
Specifications
| SKU |
90MB1H30-M0EAY0 |
| GTIN |
4711387429761 |
| Specifications |
|
Model
|
PRIME B650M-R
|
|
CPU
|
AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors*
|
|
|
* Refer to for CPU support list.
|
|
Chipset
|
AMD B650 Chipset
|
|
Memory
|
2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)
|
|
|
Dual Channel Memory Architecture
|
|
|
Supports AMD Extended Profiles for Overclocking (EXPO™)
|
|
|
OptiMem II
|
|
|
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit .
|
|
|
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
|
|
Graphics
|
1 x HDMI™ port*
|
|
|
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
|
|
|
** Supports 4K@60Hz as specified in HDMI 2.1.
|
|
Expansion Slots
|
AMD Ryzen™ 7000 Series Desktop Processors*
|
|
|
1 x PCIe 4.0 x16 slot (supports x16 mode)
|
|
|
AMD Ryzen™ 8000 Series Desktop Processors
|
|
|
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
|
|
|
AMD B650 Chipset
|
|
|
1 x PCIe 4.0 x1 slots
|
|
Storage
|
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
|
|
|
AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors
|
|
|
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
|
|
|
AMD B650 Chipset
|
|
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
|
|
|
4 x SATA 6Gb/s ports
|
|
|
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
|
|
Ethernet
|
1 x Realtek 2.5Gb Ethernet
|
|
USB
|
Rear USB (Total 6 ports)
|
|
|
2 x USB 5Gbps ports (2 x Type-A)
|
|
|
4 x USB 2.0 ports (4 x Type-A)
|
|
|
Front USB (Total 7 ports)
|
|
|
1 x USB 5Gbps connector (supports USB Type-C®)
|
|
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
|
|
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
|
|
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
|
- Supports up to 24-Bit/192 kHz playback
|
|
|
Audio Features
|
|
|
- Audio Shielding
|
|
|
- Premium audio capacitors
|
|
|
- Dedicated audio PCB layers
|
|
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|
|

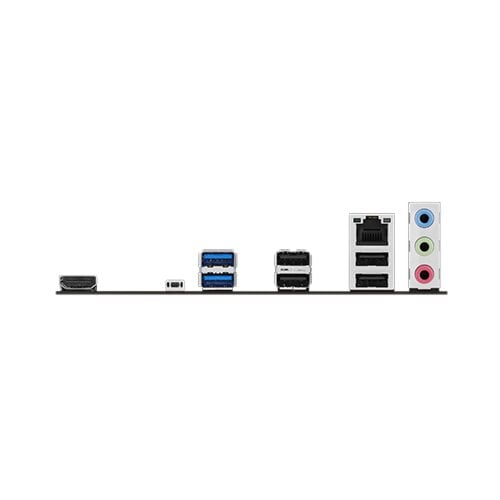

Back Panel I/O Ports
|
2 x USB 5Gbps ports (2 x Type-A)
|
|
|
4 x USB 2.0 ports (4 x Type-A)
|
|
|
1 x HDMI™ port
|
|
|
1 x Realtek 2.5Gb Ethernet port
|
|
|
3 x Audio jacks
|
|
|
1 x BIOS FlashBack™ button
|
|
Internal I/O Connectors
|
Fan and Cooling related
|
|
|
1 x 4-pin CPU Fan header
|
|
|
2 x 4-pin Chassis Fan headers
|
|
|
Power related
|
|
|
1 x 24-pin Main Power connector
|
|
|
1 x 8-pin +12V Power connector
|
|
|
Storage related
|
|
|
2 x M.2 slots (Key M)
|
|
|
4 x SATA 6Gb/s ports
|
|
|
USB
|
|
|
1 x USB 5Gbps connector (supports USB Type-C® )
|
|
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
|
|
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
|
|
Miscellaneous
|
|
|
3 x Addressable Gen 2 headers
|
|
|
1 x Clear CMOS header
|
|
|
1 x COM Port header
|
|
|
1 x Front Panel Audio header (AAFP)
|
|
|
1 x S/PDIF Out header
|
|
|
1 x Speaker header
|
|
|
1 x SPI TPM header (14-1pin)
|
|
|
1 x 10-1 pin System Panel header
|
|
Special Features
|
ASUS 5X PROTECTION III
|
|
|
- DIGI+ VRM
|
|
|
- LANGuard
|
|
|
- Overvoltage Protection
|
|
|
- Safeslot Core
|
|
|
- Stainless-Steel Back I/O
|
|
|
ASUS Q-Design
|
|
|
- Q-DIMM
|
|
|
- Q-LED Core
|
|
|
- Q-Slot
|
|
|
ASUS Thermal Solution
|
|
|
- VRM heatsink design
|
|
|
ASUS EZ DIY
|
|
|
- BIOS FlashBack™ button
|
|
|
- BIOS FlashBack™ LED
|
|
|
Aura Sync
|
|
|
- Addressable Gen 2 headers
|
|
Software Features
|
ASUS Exclusive Software
|
|
|
Armoury Crate
|
|
|
- Aura Creator
|
|
|
- Aura Sync
|
|
|
- Fan Xpert 2+
|
|
|
- Power Saving
|
|
|
- Two-Way AI Noise Cancellation
|
|
|
AI Suite 3
|
|
|
- TurboV EVO
|
|
|
- DIGI+ VRM
|
|
|
- PC Cleaner
|
|
|
ASUS CPU-Z
|
|
|
Norton 360 Deluxe (60 Days Free Trial)
|
|
|
WinRAR (40 Days Free Trial)
|
|
|
UEFI BIOS
|
|
|
ASUS EZ DIY
|
|
|
- ASUS CrashFree BIOS 3
|
|
|
- ASUS EZ Flash 3
|
|
|
- ASUS UEFI BIOS EZ Mode
|
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
|
Manageability
|
WOL by PME, PXE
|
|
Accessories
|
Cables
|
|
|
2 x SATA 6Gb/s cables
|
|
|
Miscellaneous
|
|
|
1 x I/O Shield
|
|
|
2 x M.2 Anchors
|
|
|
Documentation
|
|
|
1 x Quick start guide
|
|
Operating System
|
Windows® 11, Windows® 10 64-bit
|
|
Form Factor
|
micro-ATX Form Factor
|
|
|
9.3 inch x 8.7 inch (23.6 cm x 22.1 cm)
|
|
| Brand |
ASUS |
| Weight |
4.000000 |
| Chipset Brand |
AMD B650 |
| Socket |
AMD AM4 |
| Form Factor |
MICRO-ATX |
